Zaskar LT Elite
- RockShox 35 Silver R fork
- SRAM SX Eagle, 12-speed drivetrain

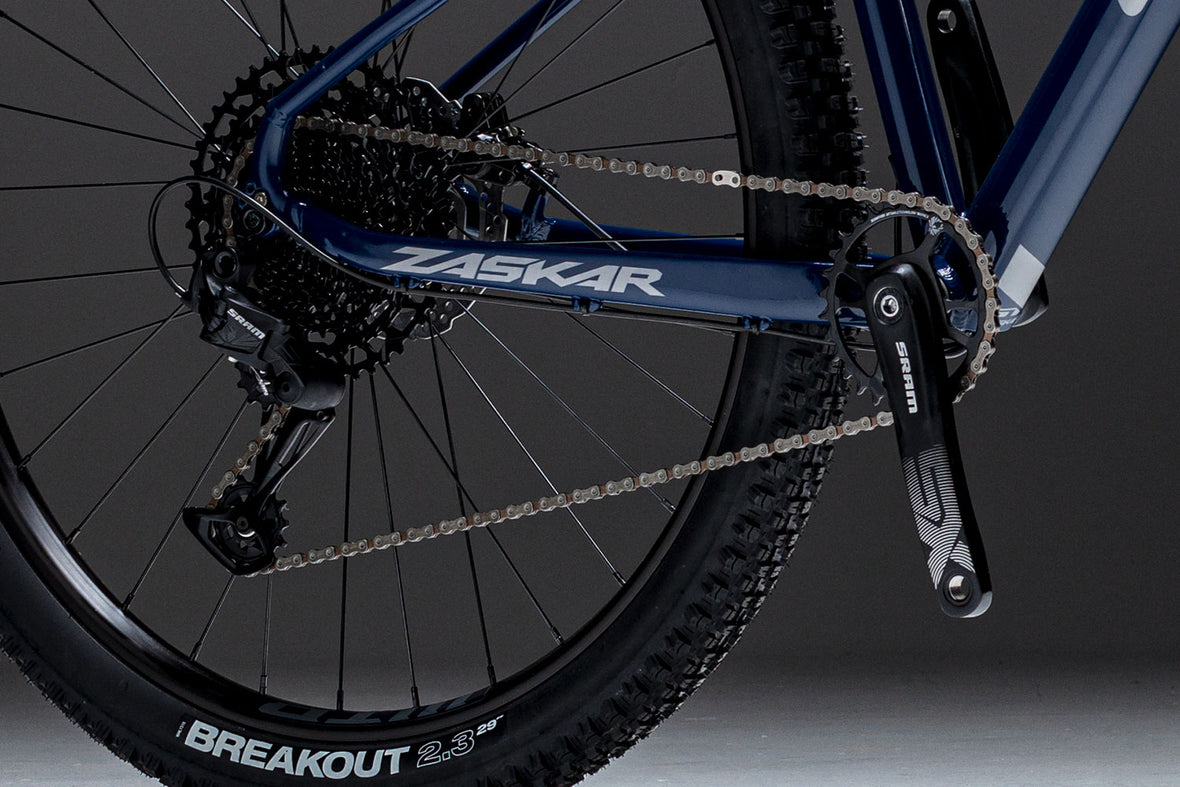

UDH Equipped
SRAM’s Universal Derailleur Hanger is the most accessible hanger on the market. The UDH protects your derailleur against impacts by pivoting back and out of the way and slips slightly when accidents happen. Strong, reliable, easy to find, and even easier to replace!

Trail Tuned Geo
Zaskar LT’s longer wheelbase and slack headtube angle keeps it stable at high speed, making it more than capable of tackling any obstacle on any trail. It’s upright seattube angle keeps the rider over top of the cranks for improved climbing efficiency. Up or down, Zaskar LT is ready to rip.

Triple Triangle Design
Zaskar’s seatstays have been decoupled from the seat tube to give a ‘floating’ connection between seatpost and rear axle, making it 50% more vertically complaint than a traditional double diamond frame for additional comfort.

Frame
Wheels
Drivetrain
Cockpit
Brakes
Geometry
Sizes (mm) | SM | MD | LG | XL |
---|---|---|---|---|
Seat tube length | 380 | 400 | 420 | |
Seat tube angle effective | 76 ° | 76 ° | 76 ° | |
Seat tube angle actual | 74 ° | 73.3 ° | 74.2 ° | |
Top tube horizontal | 579 | 605 | 633 | |
Top tube actual | 567 | 585 | 613 | |
Head tube angle | 65 ° | 65 ° | 65 ° | |
Standover | 710 | 730 | 750 | |
Head tube length | 110 | 120 | 130 | |
Wheelbase | 1182 | 1210 | 1239 | |
Front center | 747 | 775 | 804 | |
Chainstay length | 440 | 440 | 440 | |
Bottom bracket drop | 55 | 55 | 55 | |
Bottom bracket height | 325 | 325 | 325 | |
Fork rake | 51 | 51 | 51 | |
Trail | 121 | 121 | 121 | |
Stack | 623 | 633 | 642 | |
Reach | 424 | 448 | 473 | |
Travel front | 130 | 130 | 130 |
Notes
Max fork travel 140mm
Fit Guide
- XS
-
4'8" - 5'0"
- S
-
5'0" - 5'5"
- M
-
5'5" - 5'10"
- L
-
5'10" - 6'1"
- Xl
-
6'1" - 6'6"
