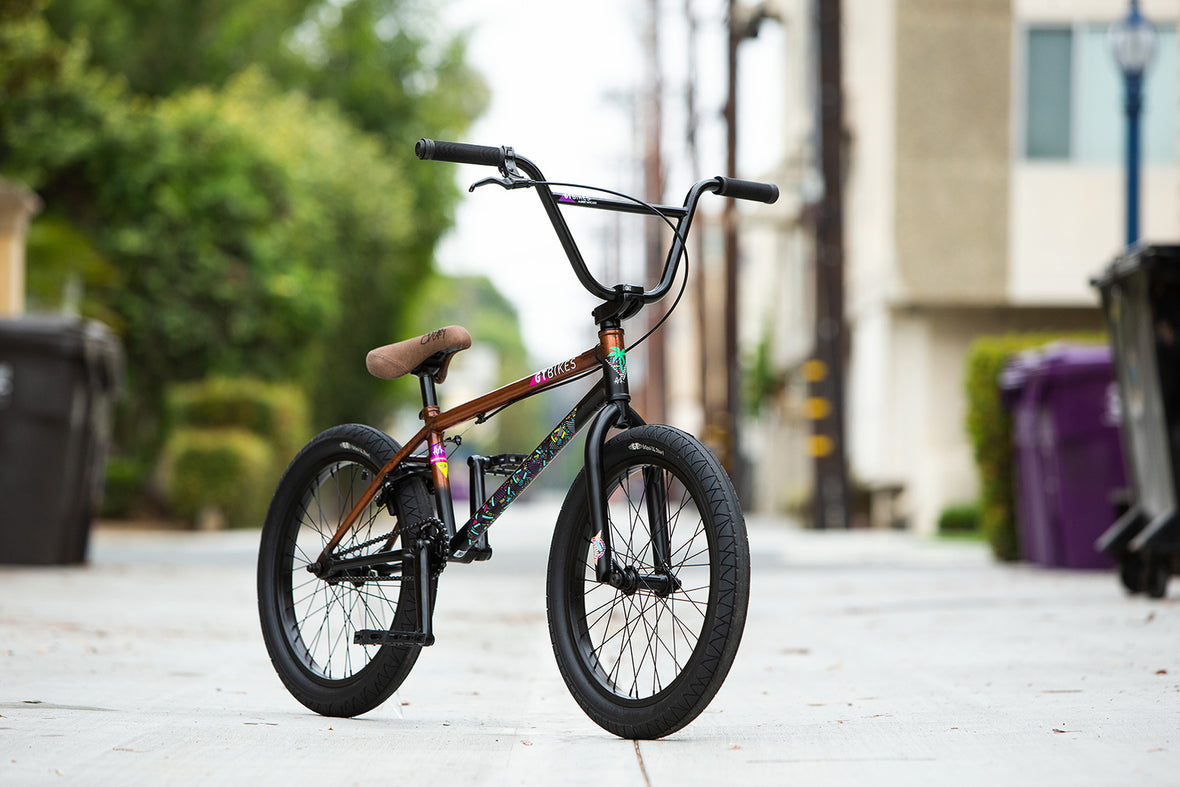

Team Mercado
The Team line features a full chromoly frame, fork and handlebar and are loaded with GT aftermarket goodies for the advanced rider. Each model replicates the named pro's personal setup to feel like a custom build without the custom price tag.
- 100% Cr-Mo, Team Frame, Fork and Handlear
- Alloy Sealed Female Front and 9T Cassette with Double Wall Rims
- GT Power Series 22mm Cr-Mo 3pc. Cranks
GT Power Series 170mm 22mm Cr-Mo Cranks
Strong 22mm spindle cranks, only found on our Team Model bikes
GT Boxpalm Pivotal Saddle
Featuring Alberts original Boxpalm embroidered artwork
100% Chromoly Team Frame
Ultra-responsive tech geometry | 12.4-inch Rear End Length | 75.5° Headtube Angle | 21-inch TT Length
Frame
frame
Team Frame, 100% Cr-Mo, Double Gusset, Mid BB, Removable Seat Stay U-Brake, Integrated 1-1/8" H/T, Removable Rotor Tabs
sizes available
21
fork
100% Cr-Mo, 1pc Threaded Steerer, Tapered Legs, 31mm Offset
wheel size
20
Wheels
rims
Alloy Double Wall, 36h
front hub
Alloy Sealed 3/8" Female Axle
rear hub
Alloy Sealed 14mm Cassette
front tire
GT Pool 2.3"
rear tire
GT Pool 2.3"
spokes
Stainless Steel, 14g
Drivetrain
rear cogs
9T 1pc. Driver
chain
KMC S1
crank
GT Power Series 3pc Chromoly 170mm, 22mm x 48T Spindle, GT NBS 25T Alloy Chainwheel
bottom bracket
Sealed Mid 22mm
pedals
GT Logo PC Platform
Cockpit
handlebar
GT 2pc Freestyle, 100% Cr-Mo, 9"H x 29"W, 3°Up, 11° Back
stem
GT NBS Top Load 50mm, 32mm Rise
grips
GT Super Soft Flangeless
headset
1-1/8" Sealed Integrated (41.8 x 45)
seatpost
Alloy Pivotal, 25.4 x 200mm
saddle
GT Pivotal Padded
Brakes
brakes
NBS Alloy U-Brake w/ Soft Compound Pad
brake levers
NBS Hinged Alloy
Please note that, based on component availability and other factors, specifications are subject to change without notice.
Fit Guide
- 12"
-
2'10" - 3'7"
- 14"
-
3'1" - 3'7"
- 16"
-
3'7" - 4'0"
- 18"
-
4'0" - 4'10"
- 20"
-
4'10" - 6'5"
- 24"
-
4'10" - 6'5"
- 26"
-
4'10" - 6'5"
- 29"
-
4'10" - 6'5"
Geometry
| Sizes (in) | 21 |
|---|---|
| Top tube actual | 21 |
| Head tube angle | 75.5 ° |
| Seat tube angle | 71 ° |
| Standover | 9.06 |
| Head tube length | 4.72 |
| Wheelbase | 35.18 |
| Front center | 22.7 |
| Chainstay length | 12.44 |
| Bottom bracket height | 11.77 |
| Seat post diameter | 1 |
| Axel to crown | 12.6 |
| Dropouts | 14mm |
| Head tube type | Integrated |
| Brake mounts | Removeable |
| Rider area | 22.59 |
| Bottom bracket type | Mid |
| Fork rake | 1.2 |
| Axel to crown | 12.6 |
