Team Mercado

The Team line features a full chromoly frame, fork and handlebar and are loaded with GT aftermarket goodies for the advanced. Each model replicates the named pro's personal setup to feel like a custom build without the custom price tag.


  • 100% Cr-Mo, Team Frame, Fork and Handlear
  • Alloy Sealed Female Front and 9T Cassette with Double Wall Rims
  • GT Power Series 22mm Cr-Mo 3pc. Cranks
See Full Spec
Size
Color
Out of stock

Shipping Policy

Free shipping on all orders for bikes, apparel, parts & accessories for any order in the United States.

*Please allow for 5-7 days of transit time as all orders are shipped via ground shipping.

*If an order is placed on Friday, please allow 2-3 days for processing.

Please reach out to sales@gtbicycles.com if you have any questions.

Return Policy

Returns are accepted within 30 days of delivery.

Details

  • The bike or part must be in its original packaging to receive a 100% refund.
  •  If product is unused but protective packaging has been removed or has major damage, we will refund 75% of the order.
  • We do not accept returns on apparel.
  • Please allow for 7-10 days to process the return and issue refund.

*Protective packaging includes: foam, cardboard, zip ties, plastic axle covers, warning decals and reflectors.

Please reach out to sales@gtbicycles.com to start a return.

Contact Us

This bike will come partially assembled. Tools needed for assembly are not included. Please refer to these instructions and build video on how to assemble the bike. This bike is not eligible for the GT Connect build program.

Added To Cart

  • ${ item.product_title }

    ${ item.variant_title } x ${ item.quantity }

You May Also Like

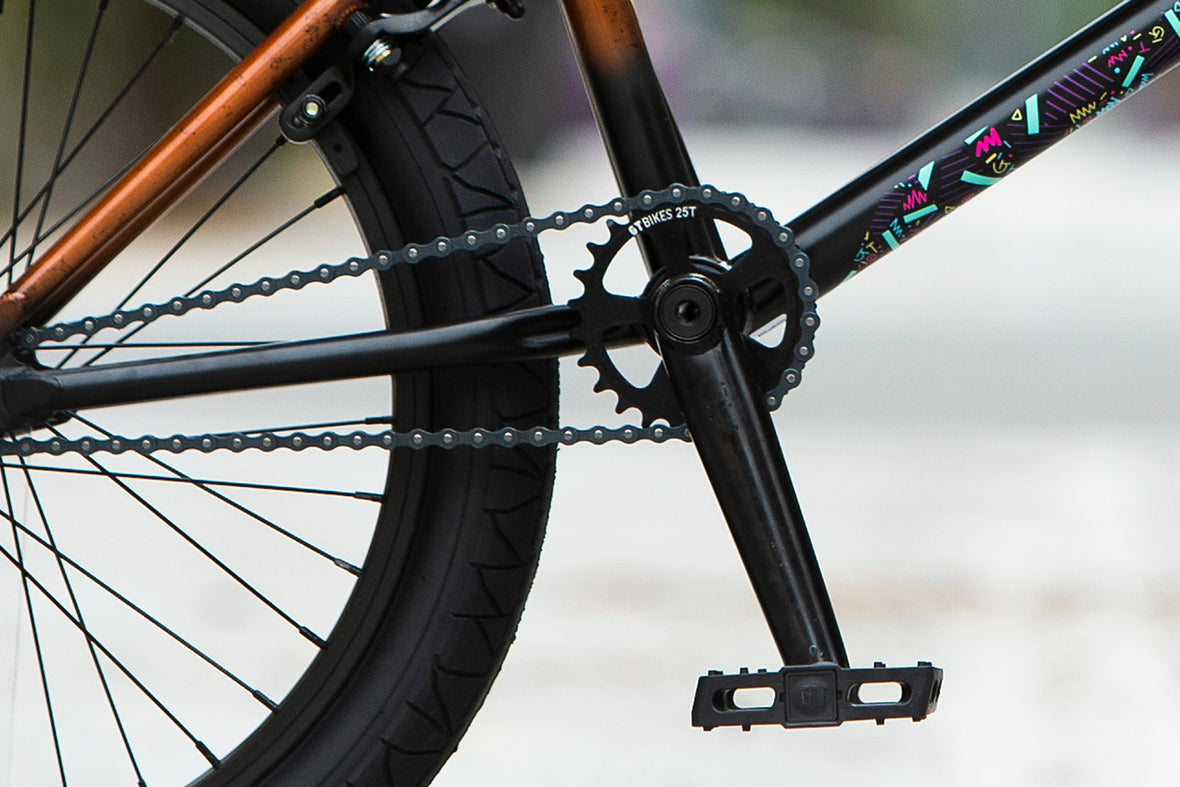

GT Power Series 170mm 22mm Cr-Mo Cranks

Strong 22mm spindle cranks, only found on our Team Model bikes

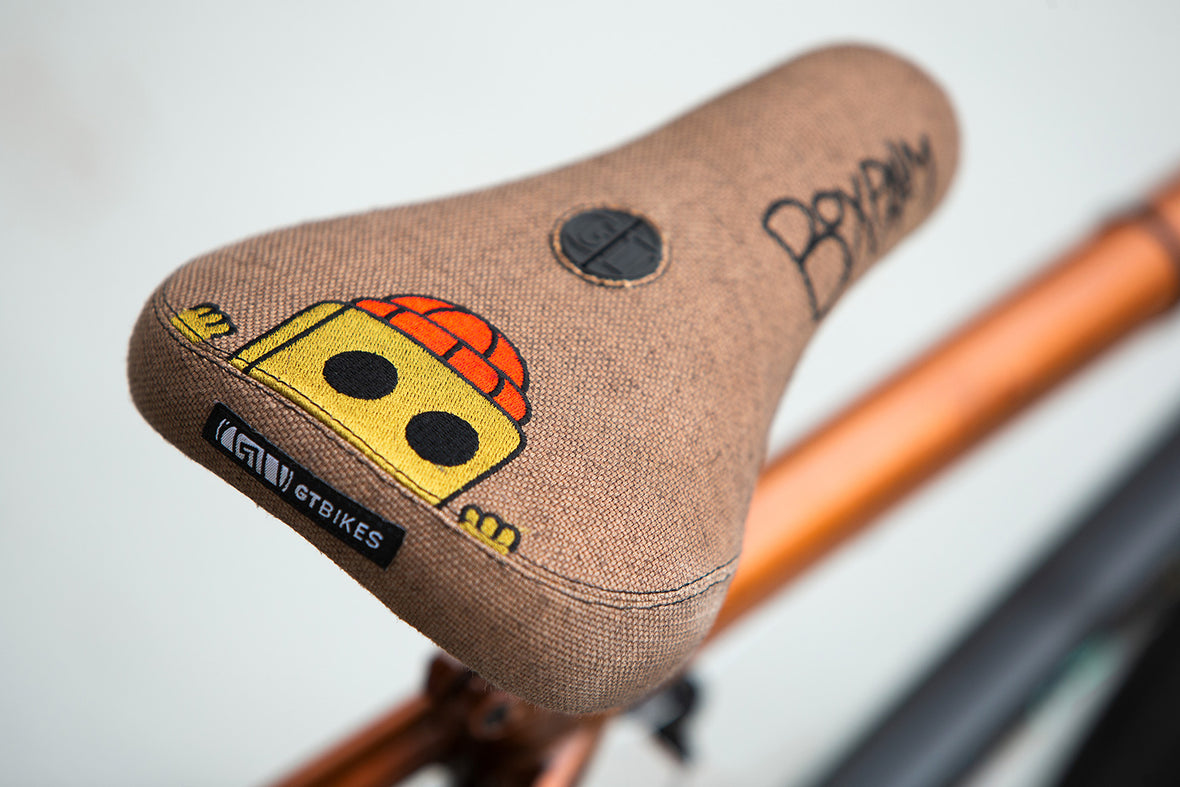

GT Boxpalm Pivotal Saddle

Featuring Alberts original Boxpalm embroidered artwork

100% Chromoly Team Frame

Ultra-responsive tech geometry | 12.4-inch Rear End Length | 75.5° Headtube Angle | 21-inch TT Length

Frame

frame Team Frame, 100% Cr-Mo, Double Gusset, Mid BB, Removable Seat Stay U-Brake, Integrated 1-1/8" H/T, Removable Rotor Tabs
sizes available 21
fork 100% Cr-Mo, 1pc Threaded Steerer, Tapered Legs, 31mm Offset
wheel size 20

Wheels

rims Alloy Double Wall, 36h
front hub Alloy Sealed 3/8" Female Axle
rear hub Alloy Sealed 14mm Cassette
front tire GT Pool 2.3"
rear tire GT Pool 2.3"
spokes Stainless Steel, 14g

Drivetrain

rear cogs 9T 1pc. Driver
chain KMC S1
crank GT Power Series 3pc Chromoly 170mm, 22mm x 48T Spindle, GT NBS 25T Alloy Chainwheel
bottom bracket Sealed Mid 22mm
pedals GT Logo PC Platform

Cockpit

handlebar GT 2pc Freestyle, 100% Cr-Mo, 9"H x 29"W, 3°Up, 11° Back
stem GT NBS Top Load 50mm, 32mm Rise
grips GT Super Soft Flangeless
headset 1-1/8" Sealed Integrated (41.8 x 45)
seatpost Alloy Pivotal, 25.4 x 200mm
saddle GT Pivotal Padded

Brakes

brakes NBS Alloy U-Brake w/ Soft Compound Pad
brake levers NBS Hinged Alloy
Please note that, based on component availability and other factors, specifications are subject to change without notice.

Fit Guide

12"
2'10" - 3'7"
14"
3'1" - 3'7"
16"
3'7" - 4'0"
18"
4'0" - 4'10"
20"
4'10" - 6'5"
24"
4'10" - 6'5"
26"
4'10" - 6'5"
29"
4'10" - 6'5"

Geometry

Sizes (in) 21
Top tube actual 21
Head tube angle 75.5 °
Seat tube angle 71 °
Standover 9.06
Head tube length 4.72
Wheelbase 35.18
Front center 22.7
Chainstay length 12.44
Bottom bracket height 11.77
Seat post diameter 1
Axel to crown 12.6
Dropouts 14mm
Head tube type Integrated
Brake mounts Removeable
Rider area 22.59
Bottom bracket type Mid
Fork rake 1.2
Axel to crown 12.6
