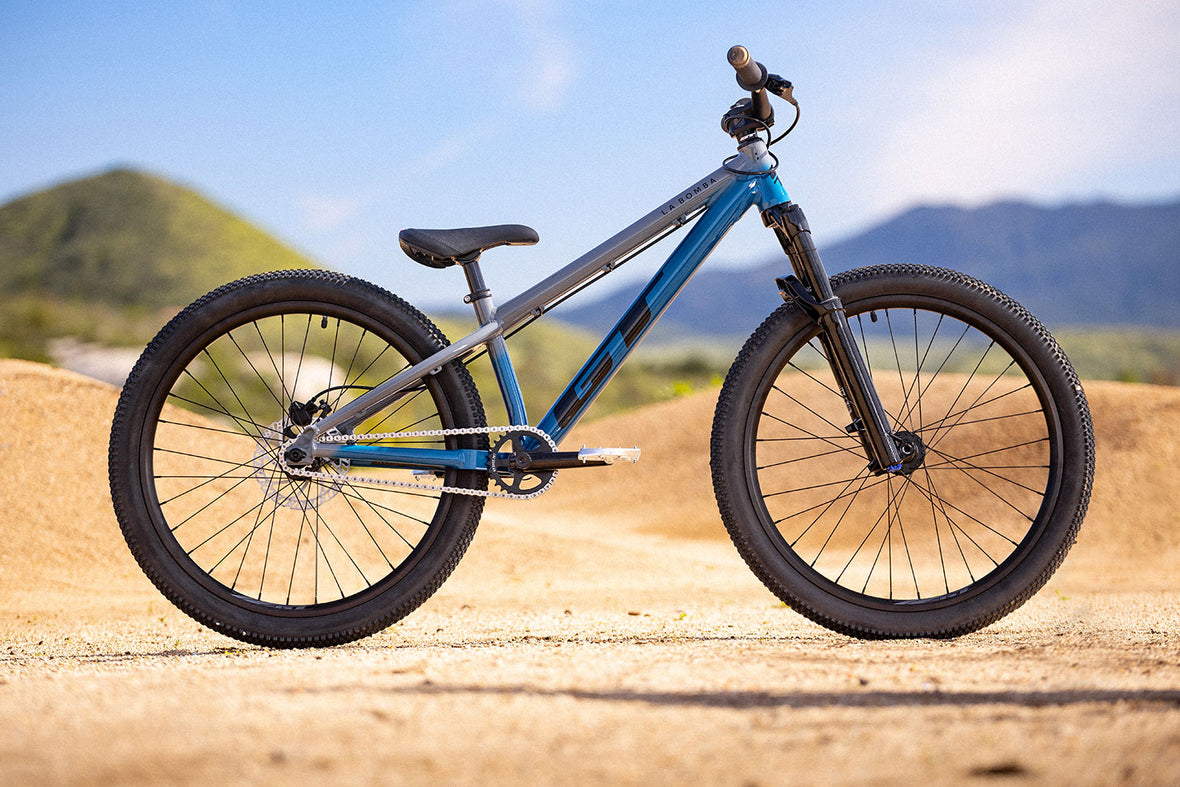

LaBomba 24
Small in stature, big on style. The LaBomba has been scaled down for next-gen rippers. Built with an ultra-responsive alloy frame, Manitou Machete J-Unit suspension fork, and 140mm GT Power Series Cr-Mo cranks, the La Bomba 24 is ready to rip at the skatepark, pump track, and local jumps.
- Manitou Machete J-Unit, 32mm, 6066 Alloy Stanchions, 100mm Travel, 110x15mm Boost
- GT Power Series 3pc Cr-Mo Cranks
- Kenda Small Block Eight Tires/ Double Wall Rims

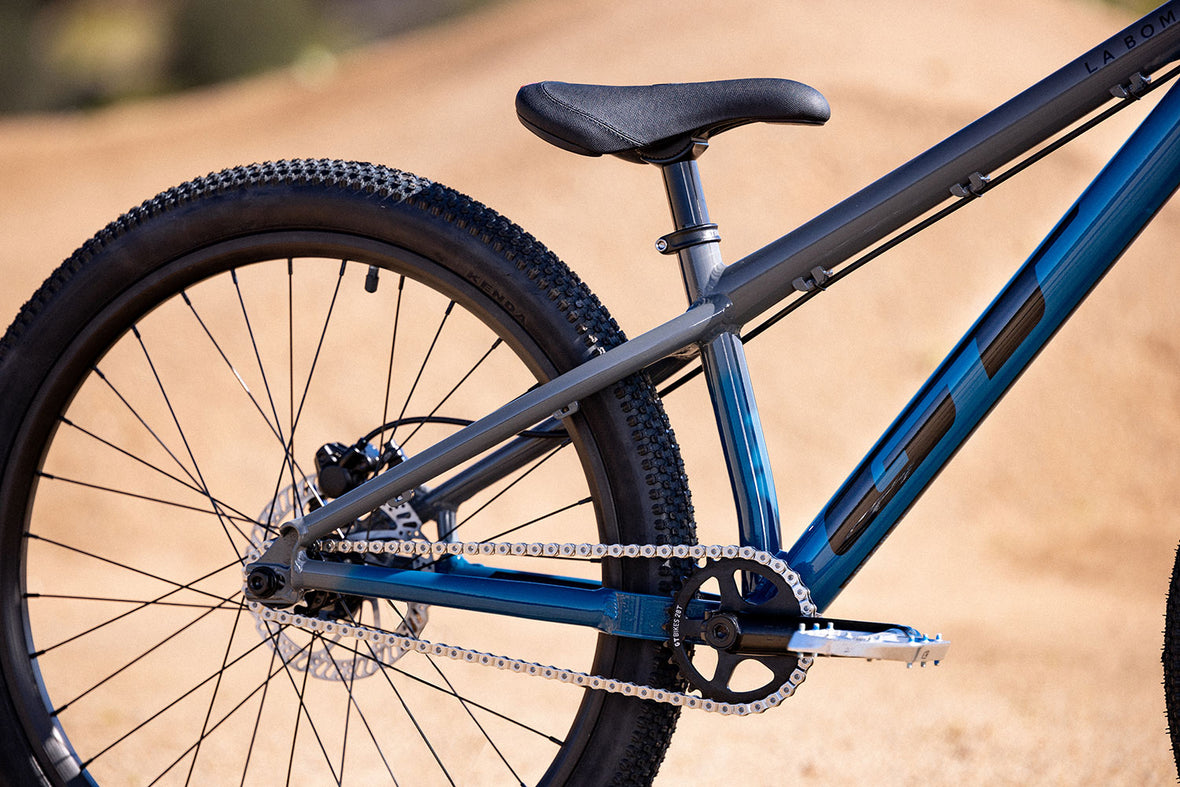

Clearance for Large Volume Tires
Upgrade to bigger tires for a softer landing.

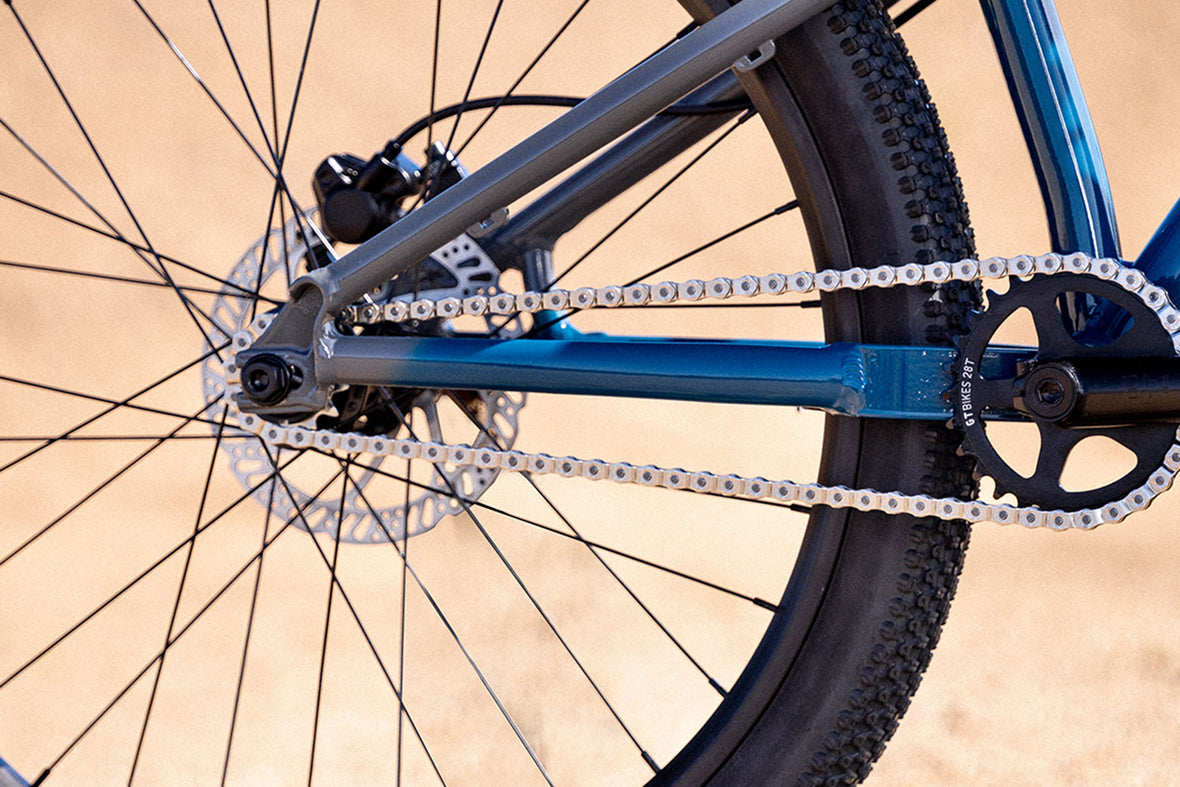

Integrated Chain Tensioners in Dropouts
Keeps your chain tight with less maintenance.
Alloy frame with ultra-responsive geometry
Ready to flick, whip, and spin when the rider is.
Frame
frame
6061 Aluminum, BSA BB, Disc Brake Mount, Integrated 1-1/8"-1.5" Taper H/T, 3/8" Horizontal Adjustable Dropout w/ Integrated Chain Tensioners
sizes available
One Size
fork
Manitou Machete J-Unit, Air Spring w/ Rebound Adjust, 15mm Thru Axle Dropout, 1-1/8"-1.5" Taper AL Steerer, Pre Load Adjust, Black Stanchions
wheel size
24
Wheels
rims
Alloy Double Wall, 32h
front hub
Sealed Alloy Disc, 15x110 Boost
rear hub
Alloy Disc Body, Sealed Bearings, 32 Hole, 3/8" x 17mm Female Bolt
front tire
Kenda Small Block Eight 2.10"
rear tire
Kenda Small Block Eight 2.10"
spokes
Stainless Steel, 14g
Drivetrain
rear cogs
13T Cog
chain
KMC HL1 Wide
crank
GT Power Series 3pc Chromoly 140mm, 19mm x 8T Spindle, GT NBS 28T Alloy Chainwheel
bottom bracket
BSA Sealed
pedals
GT Logo PC Platform
Cockpit
handlebar
GT Alloy Riser Bar, 30mm Rise, 650mm Wide, 5° Up, 9° Back
stem
GT 3D Forged Alloy Stem 35mm, 31.8mm Clamp
grips
GT Super Soft Flanged
headset
1-1/8-1.5" Taper Sealed Integrated, (45)
seatpost
Alloy Pivotal 27.2 x 200mm
saddle
GT Pivotal Slim Padded
Brakes
brakes
Hydro Disc, 160mm Rotor (F/R)
brake levers
Brake Levers Alloy, 2 Finger Hydro
Please note that, based on component availability and other factors, specifications are subject to change without notice.
Geometry
| Sizes (mm) | One Size |
|---|---|
| Seat tube length | 290 |
| Seat tube angle effective | 75.6 ° |
| Top tube horizontal | 525 |
| Top tube actual | 520 |
| Head tube angle | 68.5 ° |
| Standover | 640 |
| Head tube length | 110 |
| Wheelbase | 986 |
| Front center | 623 |
| Chainstay length | 353 |
| Bottom bracket drop | 10 |
| Bottom bracket height | 290 |
| Dropouts | 10mm |
| Fork rake | 40 |
| Trail | 83 |
| Stack | 519 |
| Reach | 375 |
| Travel front | 100 |
Are the wheels tubeless compatible?
What headset is used on the LaBomba?
What is the max rotor size for the rear brake on the LaBomba?
What is the max tire width on the LaBomba?
What bottom bracket is used on the LaBomba?
Is touchup paint available?
